The Definitive Guide to Porcelain Slab Shower Walls & Bathrooms
Large-format porcelain slabs are completely redefining luxury bathroom architecture across New York City, Long Island, and New Jersey. Moving far beyond traditional small-format tiles, high-end developers, architects, and interior designers are switching to continuous porcelain panels. This approach achieves a clean, grout-free, bookmatched natural stone look without the intense maintenance liabilities, porous staining, or iron-oxidation yellowing common to real marble.
As a premier regional importer and stockist handling large-format material daily, the Porcelain Source team provides this technical resource guide. Below, we break down the engineering metrics, real-world maintenance science, official architectural sizing charts, installation parameters, and leading Italian factories you must know when planning a luxury walk-in shower or master bathroom transformation.

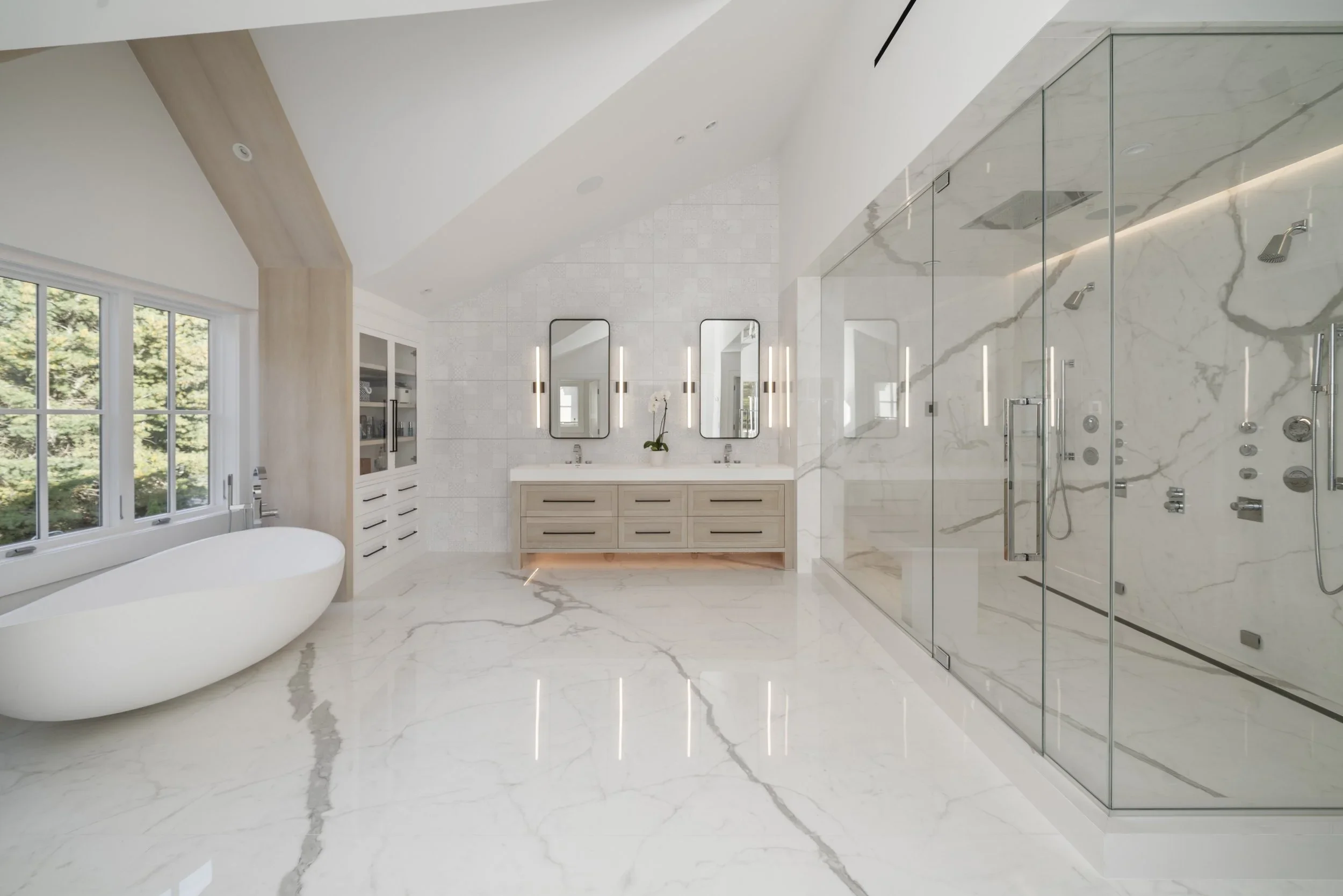

1. Real-World Case Study: Complete Bathroom & Shower Integration
(Below is a pristine master suite sanctuary completed on-site by our regional fabrication and trade delivery partners)
Material Featured: Porcelain Source Calacatta Statuario (100% Made in Italy)
Dimensions Applied: 120" x 60" Grand Panels (6mm Structural Thickness)
Location: Private Luxury Residence — New Jersey
Design Architecture & Execution Analysis: This project demonstrates the absolute zenith of "total-look" porcelain design. Instead of transitioning between disparate tiles, the design utilizes continuous sheets of Calacatta Statuario to fluidly map the dramatic gray veining from the master bathroom floor directly up through the zero-threshold glass shower enclosure.
By matching the flooring pattern seamlessly to the vertical walls using our grand 120"x60" format, visual boundaries are eliminated, making the vaulted architectural space feel exponentially larger and brighter. All critical valve fixtures and linear drain channels were custom core-drilled by our fabrication team using micro-radius diamond tooling to preserve the clean, continuous stone face.
2. Worry-Free Maintenance: The Structural Science
The primary selling point for porcelain slabs in high-moisture residential and commercial environments is worry-free maintenance. To understand why large-format panels outperform marble, quartzite, and traditional tiles, we must examine the physical density established during manufacturing.
Premium Italian large-format slabs are manufactured utilizing advanced continuous roller-compaction technology. Highly refined porcelain clays and mineral oxides are laid onto a continuous conveyor belt and compacted under immense mechanical force before being vitrified in a kiln at temperatures exceeding 2,200°F. This process eliminates internal air pockets, creating a dense mass with an ultra-low water absorption rate below 0.1%—well outperforming the standard ANSI threshold of < 0.5% for vitreous tile.
The Bathroom Material Performance Matrix
| Performance Metric | Premium Italian Porcelain Slabs | Natural Calacatta or Carrara Marble |
|---|---|---|
| Water Absorption Rate | Below 0.1% (Impermeable) | 0.20% to 0.60% (Highly Porous) |
| Stain & Acid Resistance | Class A (ASTM C650) – Highly resistant to common household acids and chemical cleaners. | Low – Prone to immediate chemical etching, dulling, and long-term water tracking. |
| Structural Sealing | Never Required (Lifetime Zero-Seal Surface). | Mandatory every 6 to 12 months to temporarily prevent moisture deep-wicking. |
| Long-Term Color Fastness | Chemically Inert – Completely immune to iron oxidation or UV color fading. | High Risk of Yellowing – Internal iron deposits oxidize naturally when exposed to water over time. |
| Grout Joint Density | Minimal (<1/16") – Eliminates standard mold, mildew, and biological breeding grounds. | High Joint Density – Requires intensive chemical cleaning and routine grout stripping. |
Everyday Care & Chemical Vulnerabilities
Because premium porcelain has an absorption rate near zero, shampoo oils, soaps, and skin conditioners cannot penetrate beneath the surface layer.
Daily Care: Polished and natural factory surfaces simply need a quick wipe with a microfiber cloth, warm water, or a pH-neutral cleaner.
Hard Water Scaling: In areas with heavy hard water (highly common across Long Island, NY and Northern NJ), dried calcium rings can safely be treated with standard vinegar sprays or domestic descaling agents without risk of dulling or stripping the surface finish.
Chemical Exceptions: While porcelain offers unmatched resistance to household chemicals conforming to ASTM C650, it is not immune to all acids. It is completely degraded by Hydrofluoric Acid (HF) and its chemical derivatives, which are occasionally found in industrial rust removers. Keep these specific commercial compounds completely away from the slab.
3. Advanced Applications: Steam Showers & Integrated Features
The structural integrity of imported porcelain panels makes them uniquely suited for hyper-specialized, high-end bathroom environments that cause standard building materials to degrade.
Steam Shower Engineering
Building an enclosed steam shower requires strict moisture containment and thermal management. Standard glass tiles or natural quartzites expand and contract significantly when exposed to rapid thermal shifts (jumping from 70°F room temperature to 120°F pressurized steam). Over time, this thermal shock breaks down the waterproofing membranes behind small tiles, causing hidden substrate moisture.
Large-format porcelain slabs feature a remarkably low thermal expansion coefficient. When coupled with high-performance, flexible polymer-modified thinset mortars, porcelain panels absorb structural expansion effortlessly. Because a single panel covers an entire shower wall with zero internal seams, there are no internal horizontal grout lines to degrade under continuous high-temperature steam pressure.
Custom Fabricated Elements
Because these slabs are available in varied structural thicknesses, a single lot of a chosen color profile can be utilized to craft completely integrated bathroom components:
6mm & 8mm Thickness Slabs: Engineered specifically for vertical wall cladding, shower pans, ceilings, and flooring transitions.
12mm & 20mm Thickness Slabs: Heavy-duty structural dimensions engineered for fabricators to mitre and build custom floating vanities, drop-in linear shower benches, seamlessly integrated sinks, and matching threshold trim caps.
4. Official Porcelain Source Sizing & Availability Matrix
To ensure pinpoint layout accuracy on the job site, architects and contractors can specify inventory from our verified Calacatta Statuario stock program. Note: Detailed dimensions across all collections are nominal.
6MM Thickness Program (Premium Polished Finish)
120" x 60" — The ultimate grand format for seamless, floor-to-ceiling single-panel vertical shower runs.
60" x 60" — Perfect for continuous flooring transitions and vast grid layouts.
60" x 30" — Highly specified for horizontal tub surrounds and mid-size wall accents.
48" x 48" — Excellent square format optimized for standard bathroom floor footprints.
30" x 30" & 15" x 30" — Ideal coordinate sizes for shower benches, feature niches, and geometric details.
8MM Thickness Program (Available in Polished & Natural Finishes)
24" x 48" — The traditional trade favorite for heavy-traffic master bath floors.
24" x 24" — Highly durable square cut format.
Trade Note: The Natural finish in our 8mm line provides enhanced slip resistance, making it the ideal selection for wet shower floors, dry pans, and main bathroom drying areas.
5. Hand-Picked Brands in Local Stock
Rather than dealing with standard 12-week overseas production delays or managing complex customs logistics, Porcelain Source maintains a 70,000 square foot regional warehouse in Roseland, NJ fully stocked with ready-to-ship lots from the world's leading brands:
Laminam: The world pioneer in ultra-thin, structurally flexible large-format architectural slabs.
Fiandre & Iris Maximum: Celebrated globally for their hyper-realistic, deep-veined bookmatched marble replications.
Florim Stone & Sapienstone: Specialized heavy-duty surfaces ideal for custom-fabricated integrated vanities and matching bathroom countertops.
ABK Stone & Ariostea: Contemporary, texture-driven stone and concrete visual profiles for modern, minimalist designs.
6. Professional Installation Framework
While standard ceramic tiles can be handled with entry-level tools, managing large-format panels requires strict adherence to ANSI A108.19 standards for interior installations of gauged porcelain tile panels/slabs. For a successful, lifetime installation inside a high-moisture shower environment, ensure your installation crew follows these exact protocols:
Substrate Flatness: The wall substrate must be verified flat to within 1/8" over a 10-foot run (and 1/16" over a 2-foot run) from the required plane. Any bowing in the framing studs will create hollow points behind the slab, risking mechanical fractures when plumbing valves or heavy glass shower doors are anchored down.
Double-Bedding Mortar Application: Mortar must be combed in straight, parallel lines on both the wall substrate and the back of the porcelain panel using a specialized large-format notched trowel. Comb the ridges parallel to the short side of the slab. When embedding, move the slab back and forth across the ridges to collapse them. Swirling or cross-hatching mortar lines traps air pockets, which violates the ANSI required 95% minimum mortar coverage for wet areas and causes long-term structural failure.
Stress Distribution on Cutouts: All holes for shower mixers, body sprays, and rain-heads must be executed using continuous-cooling diamond core drill bits. Sharp, square 90-degree internal corner cutouts or cross-cuts are strictly forbidden because they act as immediate stress concentration points. Fabricators must pre-drill all internal corners to a minimum smooth radius of 5mm for walls (and a minimum of 10mm for horizontal surfaces) to distribute structural loads safely.

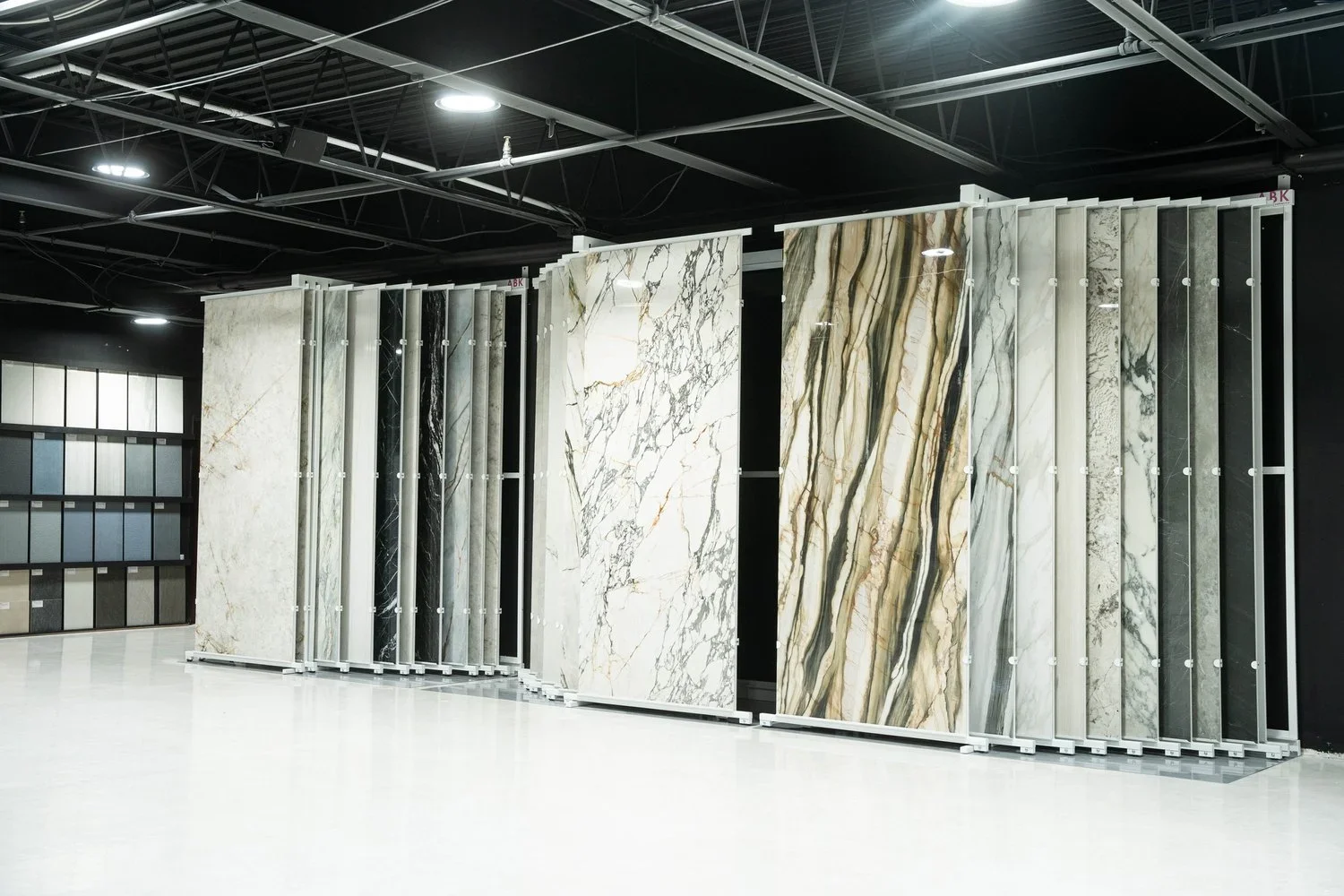

7. Tour Our Tri-State Material Gallery
Do not select your master bathroom materials from a tiny print sample or a computer screen. View full, sequential bookmatched sequences in person to appreciate the true grain behavior.
Located just 30 minutes outside of Manhattan—conveniently servicing elite trade professionals, architects, and luxury homeowners across NYC, Long Island, New Jersey, and Pennsylvania.
